Doc. LKB-EL04-ARev. A, 10/2026Lokebox Studio Concept LabNot for production, concept piece

Signage / N5, Premium Product Sign

ARCEL·04

Edge-lit acrylic LED panel, demonstration unit. Order as ARC-EL04-CW-30.

1. Features
  1. 01Edge-injected LED, 11 discrete points, no painted gradient
  2. 02Cast acrylic panel, 8 mm, real PMMA transmission and IOR
  3. 03Subsurface laser-register engraving, no surface paint or decal
  4. 044x stainless standoff mount, 30 mm wall offset
  5. 05External low-voltage DC driver, exposed 2-conductor cable
ARC EL·04, a clear edge-lit acrylic panel with an engraved arc mark and wordmark, mounted on four stainless standoffs against a plain studio backdrop

Fig. 1, cover photograph

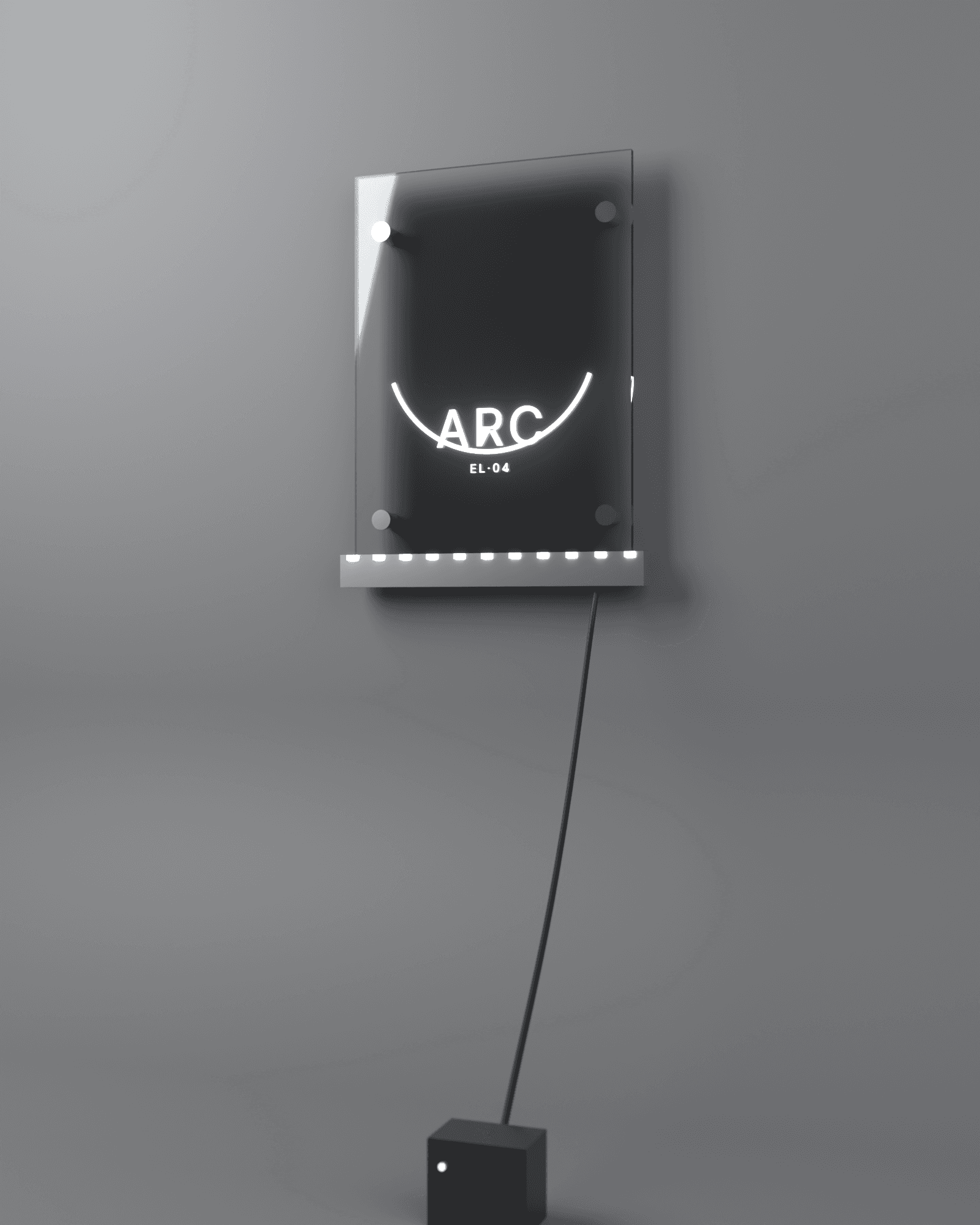

ARC EL·04 full assembly: acrylic panel, aluminum LED channel with visible discrete chips, four stainless standoffs and the driver cable resting on the studio floor
Fig. 1, device photograph, full assembly2.1
3. Specifications
Panel
300 x 420 x 8 mm, cast acrylic (PMMA)
Finish
Polished edge, clear, high transmission
Engraving
Subsurface mark, arc + wordmark, laser register
Light source
Edge-injected LED, cool white, 11 points
Mount
4x stainless standoff, 30 mm wall offset
Power
External driver, low-voltage DC, exposed cable
4. Typical performance and construction
01000100

4.1, relative luminous output vs. relative drive level
Illustrative curve, shape only, not measured lab data

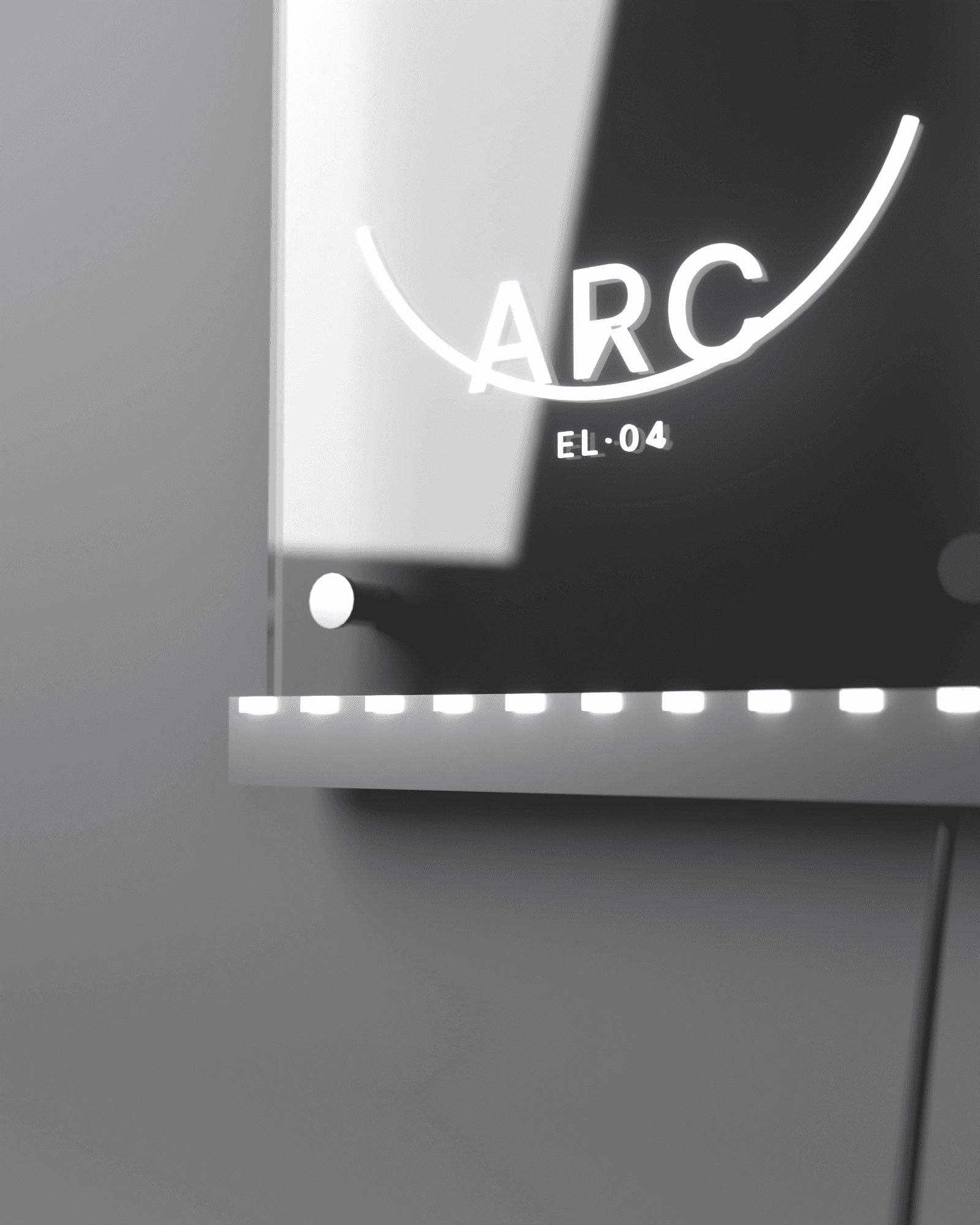

Macro detail of the ARC panel's bottom edge: discrete LED chips glowing along the brushed aluminum channel, a stainless standoff cap, the engraved arc and wordmark glowing out of focus behind the clear acrylic

Fig. 2, channel and standoff detail

4.2, construction
Core
Acrylic slab, Transmission BSDF, PMMA-real IOR
Mark
Embedded mesh, emissive core, no surface paint
Channel
Brushed aluminum, discrete LED chips, real gaps
Rig
Standoff + cap + driver, all real geometry
5. Power connection
DRIVERExternal, low-voltage DCCHANNELLED input, 11 pointsPANELEdge injectionV+ / GNDEdge

5.1, simplified connection diagram. Generic 2-conductor DC polarity shown for reference, no connector part was modeled with assigned polarity in the render.

6. Compliance marks, concept
LV

Low voltage circuit

EMC

Emissions, concept check

MAT

Material declaration

Concept marks, self-declared by Lokebox Studio. Not issued by, and not a representation of, any real certification body.

7. Ordering information

ARC-EL04-CW-30

ARC
Product line, self-initiated Lokebox Studio concept
EL04
Model, edge-lit construction, unit 04 of the family
CW
Light source, cool white engraving illumination
30
Mount, 30 mm standoff wall offset
